Plastic Fibre MPO Adaptor / MPO Ferrule MPO Adapter For 40G Network Upgrade
MPO plastic fiber optic adapter
MPO fiber optic adapter is also called MPO fiber optical adapter, optic fiber adapter, optical fiber adapter, optic adapter, fiber adapter, optical adapter. We can supply MPO adapter for Single mode UPC and APC, and Multimode PC.
Descriptions:
MPO adapter is adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together. The MPO adapter comes standard in black for plastic or metal housing for die cast.
Features:
- Meet IEC 61754-7 and TIA/EIA 604-5 standards for MPO/MTP interfaces
- Internal shutter is available
- Keyway available for key-up to key-up or key up to key down
- Low insertion loss, high return loss
- High precision of mechanical dimensions
- High reliability & stability
- Ceramic or Bronze Sleeve
- PC, APC, UPC optional
- Simplex / Duplex
- Hybrid adapter Optional
Applications:
- Widely used in the ODF, Telecommunication networks
- Optical communication system
- Optical instruments measuring appliance
- Optical fiber sensor
- CATV
- Active device termination
- Telecommunication networks
- Metro
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installations
- Gigabit Ethernet
- Video

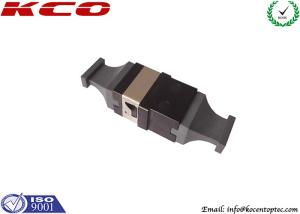

Product pictures:
Specifications
| Housing | UL-Rated Plastic or Die Cast |
| Clip & Shutter | Stainless Steel |
| Durability | < 0.3dB change, 500 mating cycles |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -40℃~+85℃ |
Environment and Mechanical
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidity cycling | 40ºC, 95%,96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
